Technical catalogue

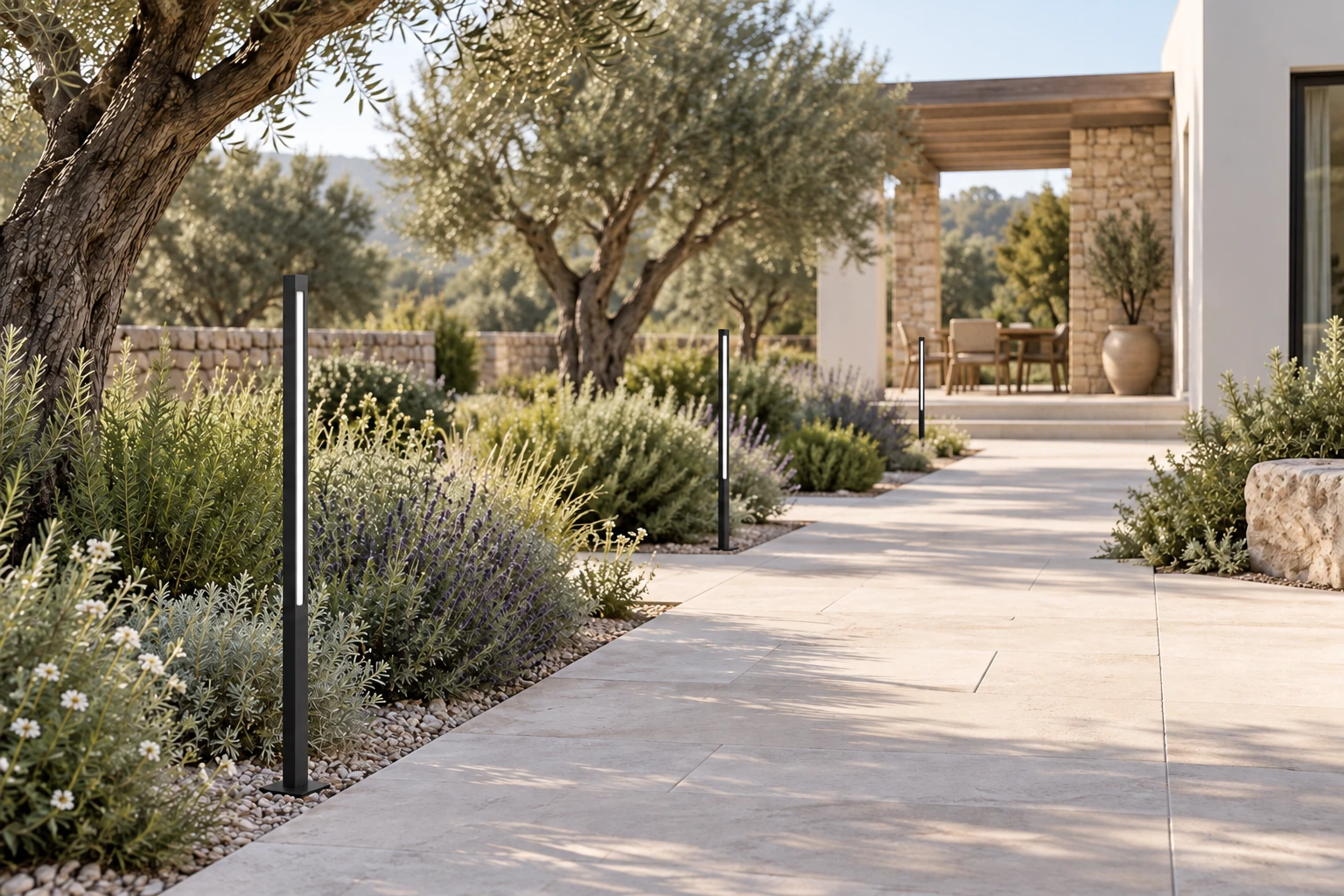

STELO is Lumeitalia's (Mya Tech S.r.l.) range of outdoor LED bollards, available in three heights (500, 800 and 1600 mm) with a longitudinal direct-emission light slot, a black-painted metal profile body (25 mm pole section) and two fixing options: floor base (PT) or ground spike (PS). Integrated electronic power supply, Class II, IP65, CRI >90, SDCM 3, CCT 3000K or 4000K to be specified when ordering. Designed for residential paths, urban and corporate spaces, seafronts, gardens, terraces and marking out pedestrian paths.
Outdoor LED bollard · 500 / 800 / 1600 mm · IP65 Class II
| Available heights | 500 / 800 / 1600 mm |
|---|---|
| Power | 8 / 13 / 28 W |
| Luminous flux | 960 / 1560 / 3360 lm |
| Efficacy | 120 lm/W |
| CCT | 3000K / 4000K (da specificare in ordine) |
| CRI | >90 |
| SDCM | 3 |
| Light emission | Diretta (feritoia luminosa longitudinale) |
| Light source | Modulo LED integrato · LED SMD DOB, non sostituibile |
| Service life | 50.000 (t. 25 °C) h |
| Photobiological risk | RG1 |
| Power supply | 220-240V AC · 50/60Hz |
| Power supply | Elettronico integrato |
| Electrical class | II |
| Ingress protection | IP65 |
| Operating temperature | −15 / +45 °C |
| Dimmable | No (On-Off) |
| Pole section | 25 mm |
| Standard finish | Nero (altre finiture su richiesta) |
