Technical catalogue

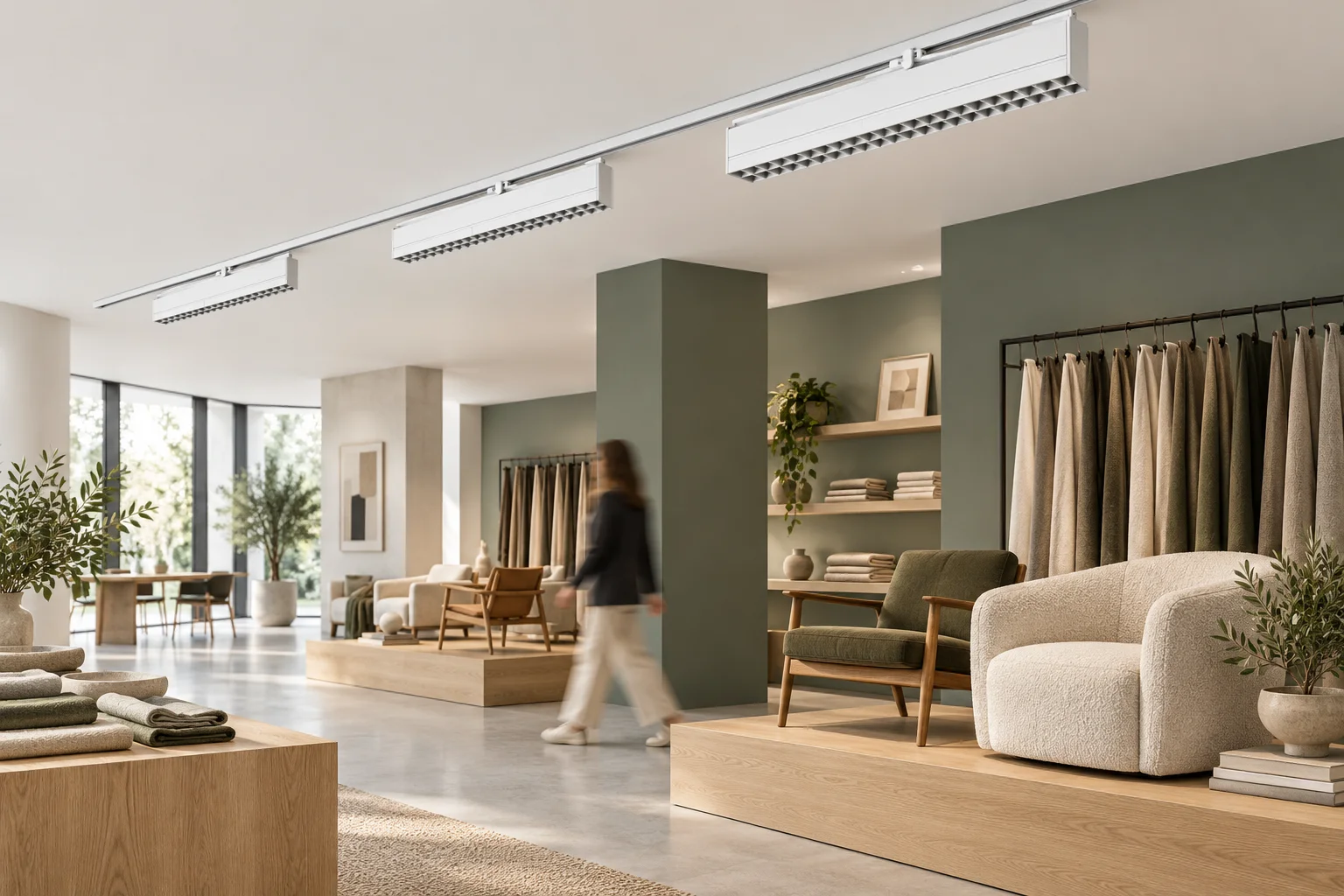

T-LINE is a slim linear bar for three-circuit track, with an aluminium housing, continuous PMMA lens or PC cover and adapter. Documented series lengths are 600 and 1500 mm, with a driver with DIP-switch selection. White and black finishes; UGR<19 applies to the narrow 60° optical configuration, not all optics.
Three-circuit linear track lighting · continuous lens · 600 and 1500 mm
| Power | 14/16/18/20 W (600 mm); 35/40/45/50 W (1500 mm) |
|---|---|
| Flusso finitura bianca | 2240/2560/2880/3200 lm (600 mm); 5600/6400/7200/8000 lm (1500 mm) |
| Efficacy | Fino a 160 lm/W in bianco; fino a 140 lm/W in nero |
| CCT | 2000/2700/3000/4000/5000/6000 K |
| CRI | >80 / >90 |
| UGR | <19 nella configurazione con ottica stretta 60° |
| Ingress protection | IP20 |
| Vita dichiarata | 60.000 h; B10 riferito a 50.000 h |
| Body | Alluminio |
| Optic | Lente PMMA oppure cover PC |
| Power supply | 220–240 VAC |
| Collegamento | 4 fili, L1/L2/L3 + N, per binario trifase |
| Driver | Con selezione DIP-switch |
| Finishes | Bianco e nero |
| Lengths | 600 e 1500 mm |
| Compatibilità binari | Powergear, Global, Eutrac, Ivela, Staff, Unipro, Stucchi |
| Codice configurazione 1500 mm / 4000 K / 120° / 35–50 W | TLINE1500-120D84050W |
