Technical catalogue
FLOOR is a professional LED luminaire in the Lumeitalia range. The technical data shown below comes from the official product record.
Multi-LED in-ground luminaires Ø100-Ø260 mm, 3×2 W to 24×2 W
FLOOR is a series of multi-LED in-ground luminaires for uplighting façades, columns and trees. Six diameters from Ø100 to Ø260 mm, 3×2 W to 24×2 W, CREE XPE chips, 6°, 15° or 30° reflectors. Stainless-steel cover, aluminium body, clear or frosted tempered glass, ABS box, cable moisture insulation kit.
| Power | da 3×2 a 24×2 W |
|---|---|
| Power supply | 12V / 24V / 220V 50-60Hz |
| Chip LED | CREE XPE |
| CCT | 3000K / 4000K / 6000K · colori R / G / B |
| Riflettore | 6° / 15° / 30° |
| Materiali | Cover inox, corpo alluminio, vetro temperato trasparente o satinato, scatola ABS |
Ideas of use, not completed projects or predictions of photometric performance.

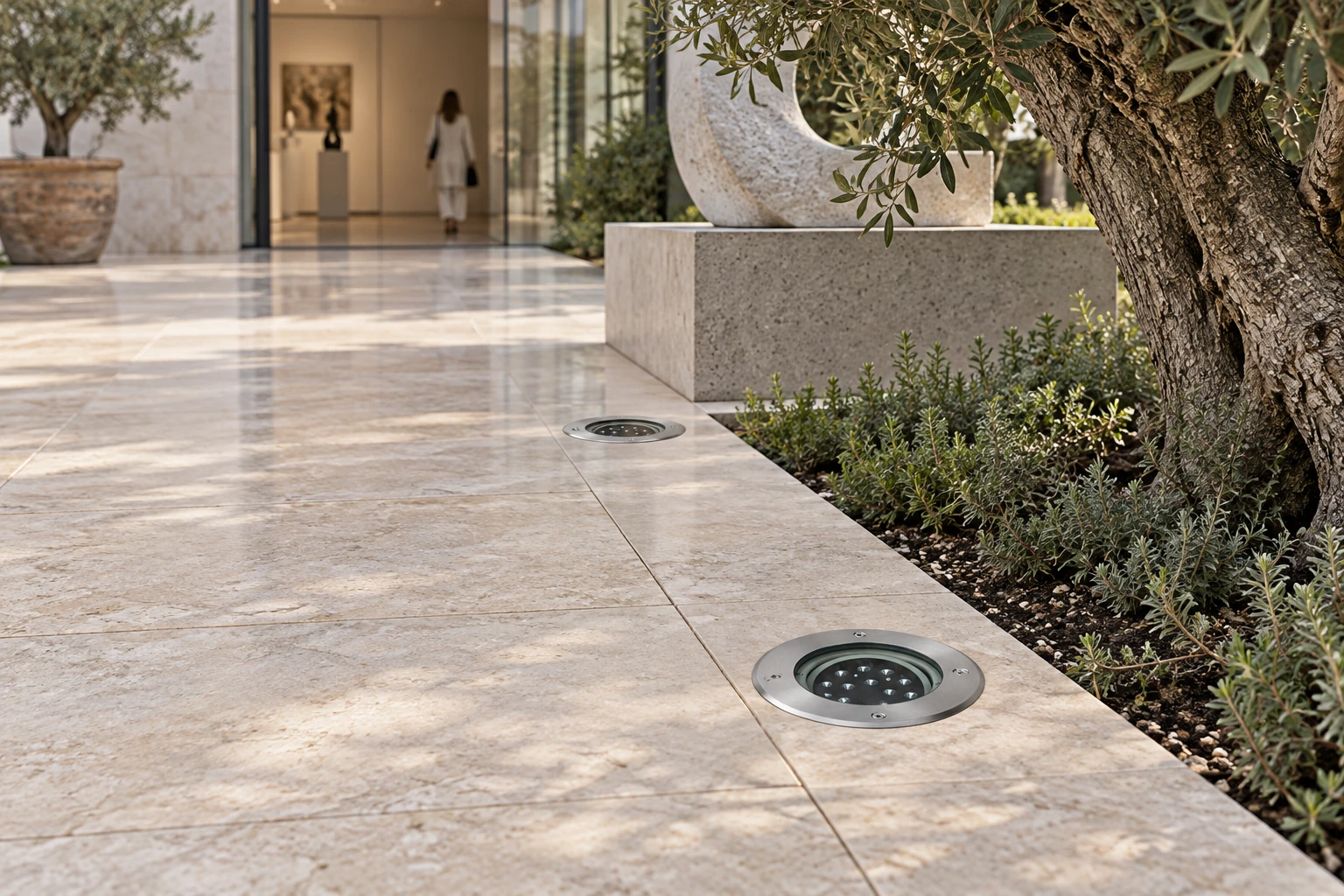

Switched-off fixtures flush with the paving, with a four-screw metal rim and optical group. Diameter and mounting are illustrative; the photograph identifies no series code.
