Technical catalogue
ALPHA MINI is a professional LED luminaire in the Lumeitalia range. The technical data shown below comes from the official product record.
Architectural LED floodlight 30-60W, IP66, symmetric/asymmetric optic

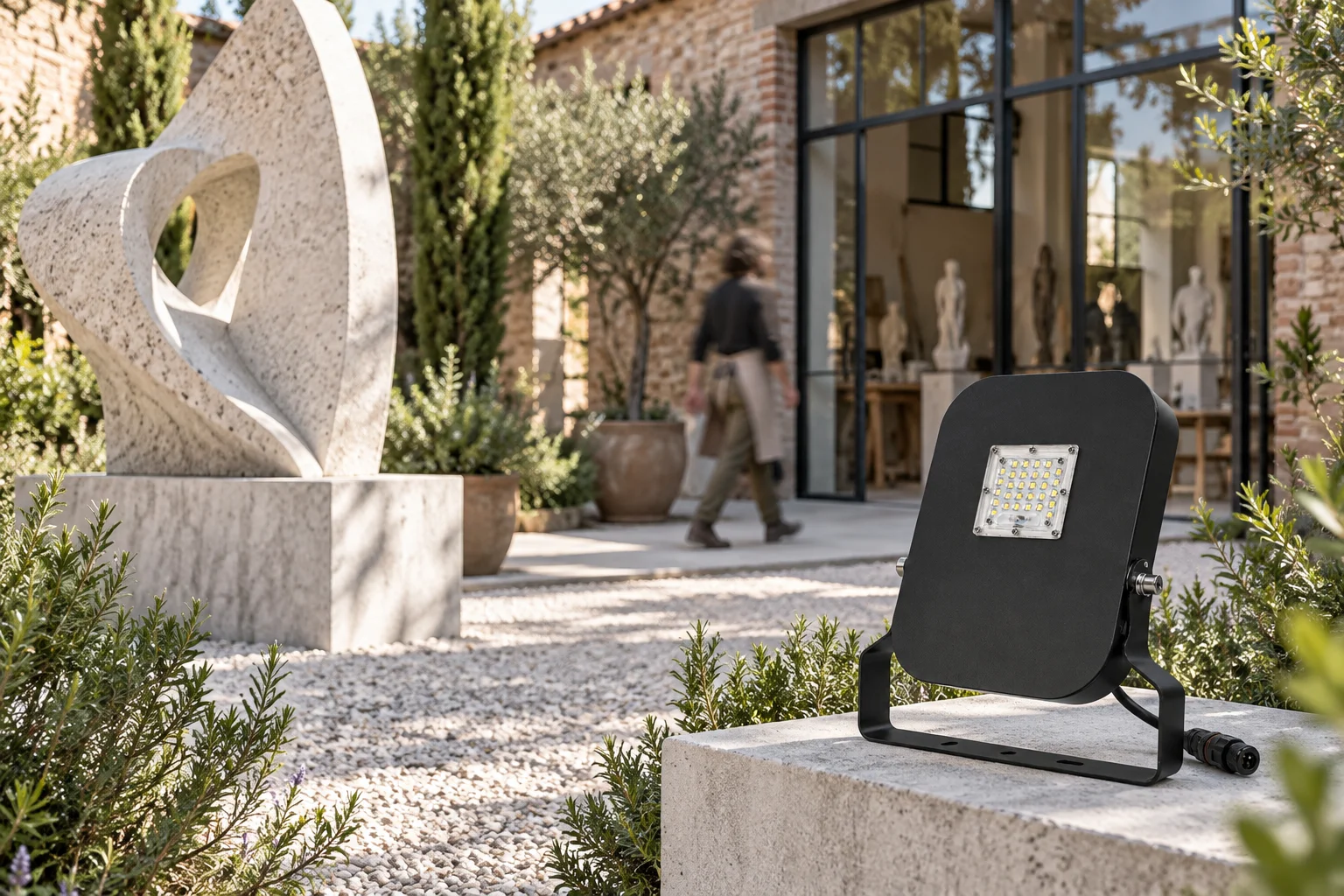

ALPHA MINI is the compact Lumeitalia architectural LED floodlight (205 × 286 × 45 mm, excluding bracket) for lighting façades, monuments, pedestrian areas, entrances, signs, courtyards and high-end architectural projects. From 20W to 60W, luminous flux from 2.940 lm to 8.820 lm, LED efficacy >230 lm/W, CCT 3000K or 4000K, 1-10V dimmable electronic driver with virtual midnight detection, IP66, IK08, surge protection up to 10 kV in common and differential mode. Die-cast aluminium body with epoxy powder coating for outdoor use and treatment for saline environments. Symmetric (SIMM) or asymmetric (AS) optic. Compliance documentation available for the product code. 4 finishes: Black, White, Silver, Corten.
| Power | 20-60 W |
|---|---|
| Luminous flux | 2.940 - 8.820 lm |
| LED efficacy | >230 lm/W |
| CCT | 3000K / 4000K |
| CRI | Ra>70 |
| Service life | L90B10 TM21 >100.000 h |
| Voltage | 220/240V 50/60Hz |
| Electrical class | II |
| Driver | Elettronico dimmerabile 1-10V, mezzanotte virtuale |
| Power factor | >0.90 cos φ |
| THD | <10 % |
| Surge protection | fino a 10 kV modo comune e differenziale |
| Ingress protection | IP66 |
| Impact resistance | IK08 |
| Operating temperature | -40 / +50 °C |
| Dimensions | 205 x 286 x 45 (staffa esclusa) mm |
| Weight | 4.0 kg |
| Optic | Simmetrica (SIMM) o Asimmetrica (AS) |
| Photobiological safety | RG0 esente (EN 62471) |
