Technical catalogue
MAXI FLOOR is a professional LED luminaire in the Lumeitalia range. The technical data shown below comes from the official product record.
In-ground luminaires Ø85-Ø320 mm, 3-36 W, 15°-60° reflectors
MAXI FLOOR is a series of in-ground luminaires for architectural and monumental uplighting. Nine diameters from Ø85 to Ø320 mm, 3 to 36 W, Bridgelux or CREE chips, 15°, 30°, 45° or 60° reflectors. Stainless-steel cover, aluminium body, clear or frosted tempered glass, ABS box, 12 V, 24 V or 220 V supply.
| Power | 3 - 36 W |
|---|---|
| Power supply | 12V / 24V / 220V 50-60Hz |
| Chip LED | Bridgelux / CREE |
| CCT | 3000K / 4000K / 6000K · colori R / G / B |
| Riflettore | 15° / 30° / 45° / 60° |
| Materiali | Cover inox, corpo alluminio, vetro temperato trasparente o satinato, scatola ABS |
Ideas of use, not completed projects or predictions of photometric performance.

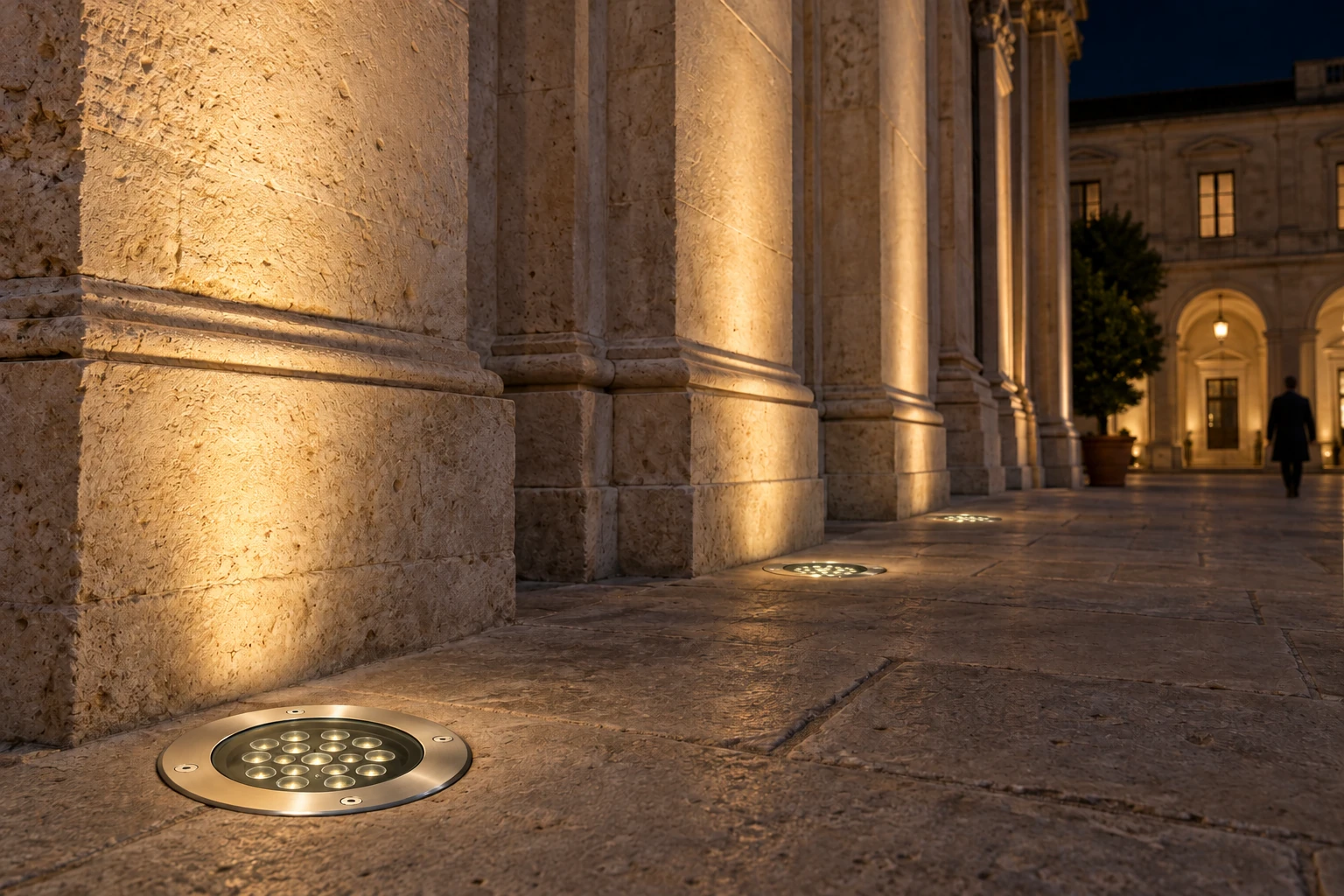

Night concept with ground-flush fixtures, a four-screw rim and eighteen optics. Light is directed towards the facade; the scene identifies no power, diameter or current series code.
