Technical catalogue

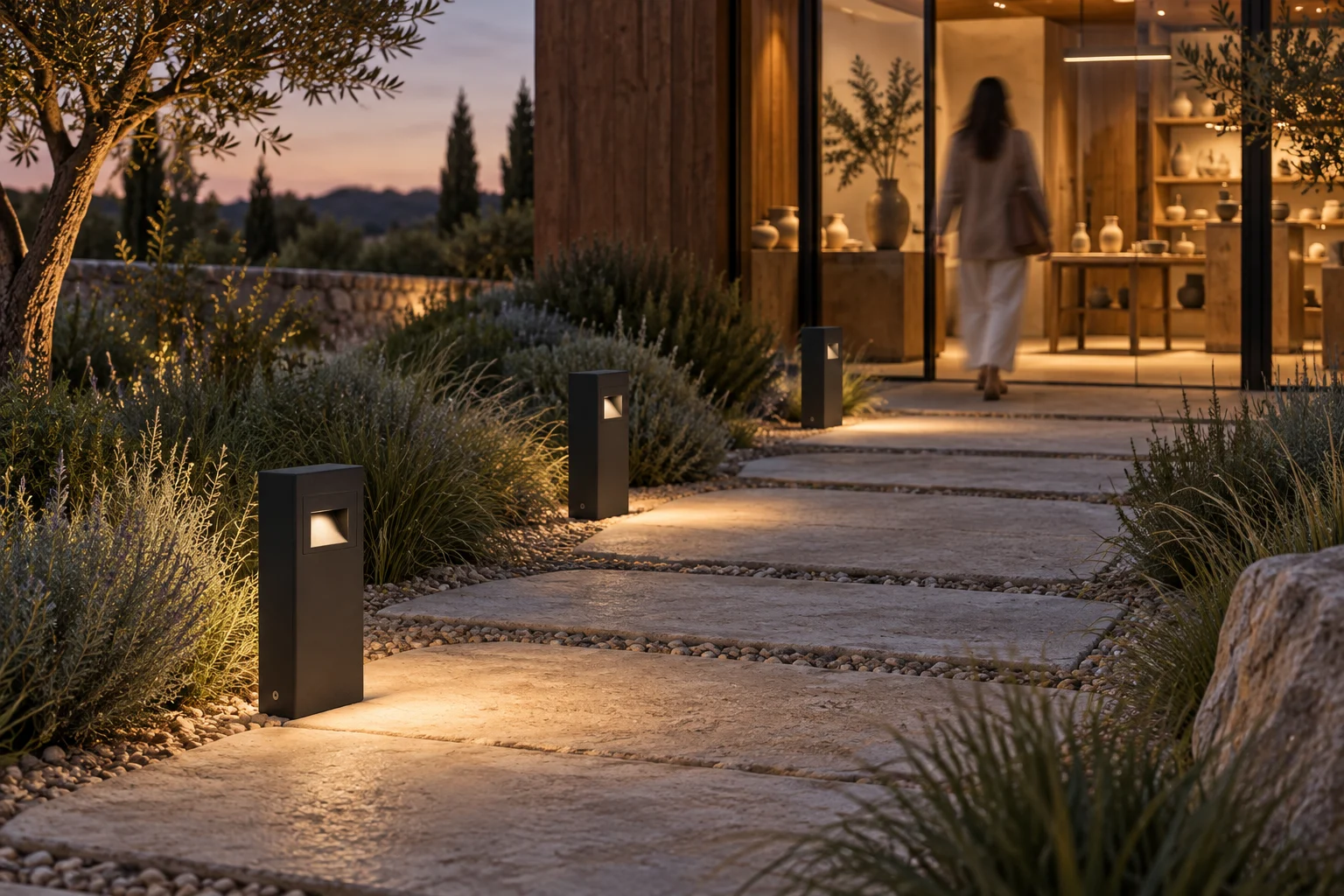

DOLMEN MINI is Lumeitalia's architectural LED step light, with a compact body in 12/10 thick sheet steel (145 × 60 × H300 mm) and an asymmetric cut-off optic for grazing illumination of pedestrian paths, walkways, gardens, entrances and high-end architectural projects. 3W, 370 lm, CCT 3000K or 4000K, CRI Ra>80, ON/OFF electronic driver, IP66 ingress protection and IK10 (body) / IK08 (diffuser) impact resistance. Photobiological safety exempt group RG0 (EN 62471). Outdoor epoxy paint with treatment for saline environments. Available finishes: White, Black, Corten, Beige.
Ground-mounted 3W architectural LED step light, IP66 / IK10
| Power | 3 W |
|---|---|
| Luminous flux | 370-372 lm |
| LED efficacy | >230 lm/W |
| CCT | 3000K / 4000K |
| CRI | Ra>80 |
| Light source | 10 LED 2530 @ 100 mA |
| Service life | L90B10 TM21 >110.000 h |
| Voltage | 220/240V 50/60Hz |
| Electrical class | I |
| Power factor | >0.95 cos φ |
| THD | <10 % |
| Surge protection | fino a 4kV |
| Ingress protection | IP66 |
| Impact resistance | IK10 corpo / IK08 diffusore |
| Operating temperature | -40 / +50 °C |
| Dimensions | 145 x 60 x H300 mm |
| Weight | 3.80 kg |
| Optic | Asimmetrica cut-off |
| Photobiological safety | RG0 esente (EN 62471) |
